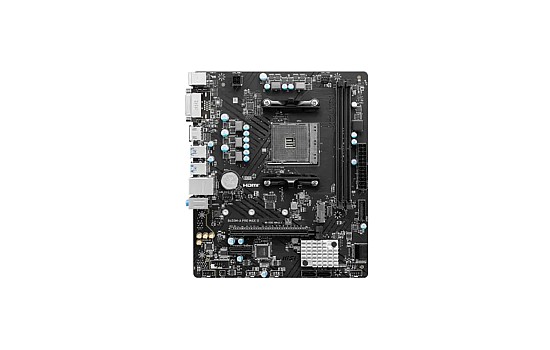

MSI B450M-A PRO MAX Motherboard AMD
Key Features
- Slots: 2
- Type: DDR4
- Form Factor: m-ATX
- Chipset: AMD B450 Chipset
Price Change Declaimer
Payment Options
Product Image Declaimer
Product Information Declaimer
| Basic Information | |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Form Factor | m-ATX |
| Audio | 8-Channel(7.1) HD Audio with Audio Boost |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 slot (Key M) - Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics) and SATA 6Gb/s - Supports 2242/2260/2280 storage devices |
| PCI | 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors - Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 2 x PCIe 2.0 x1 slots |
| Memory | |
| Maximum Memory | 32GB |
| Slots | 2 |
| Supported Memory | Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) : - 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
| Type | DDR4 |
| Graphics | |
| Graphics | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
| Max Shared Memory | 2048 MB |
| Ports, Connectors & Slots | |
| Display Port (s) | Realtek 8111H Gigabit LAN |
| DVI-D (s) | Yes |
| HDMI/VGA | Yes |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
| Supported Storage | AMD B450 Chipset : - 4 x SATA 6Gb/s ports - Supports RAID 0, RAID1 and RAID 10 - 1x M.2 slot (Key M) - Supports PCIe 3.0 x4 and SATA 6Gb/s - 1st, 2nd and 3rd Gen AMD Ryzen - Ryzen with Radeon Vega Graphics - 2nd Gen AMD Ryzen with Radeon Graphics - Supports PCIe 3.0 x2 and SATA 6Gb/s - AMD Athlon with Radeon Vega Graphics - A-series - Athlon X4 - Supports 2242/ 2260/ 2280/ 22110 storage devices |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| USB (s) | 6 x USB 3.2 Gen1 + 6 x USB 2.0 |
| Warranty | |
| Manufacturing Warranty | 03 Years Warranty |
Description
MSI B450M-A PRO MAX Motherboard AMD
The MSI B450M-A PRO MAX motherboard stands as a reliable and versatile choice for users seeking a compact yet powerful solution for their AMD-based systems. Tailored for the AM4 socket, this micro-ATX motherboard supports a wide range of processors, including 1st, 2nd, and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics, Athlon with Radeon Vega Graphics, A-series, and Athlon X4 Desktop Processors. The AMD B450 Chipset ensures robust performance and compatibility. The m-ATX form factor strikes a balance between space efficiency and expansion capabilities, making it suitable for various PC builds, from compact gaming setups to multimedia-centric systems. Featuring a PCIe 3.0 x16 slot, the motherboard provides flexible GPU options, supporting x16 speed with Ryzen 1st and 2nd Generation processors, x8 speed with Ryzen with Radeon Vega Graphics processors, and x4 speed with Athlon with Radeon Vega Graphics Processors. Two PCIe 2.0 x1 slots further enhance expansion possibilities. For memory, the B450M-A PRO MAX accommodates up to 32GB of DDR4 RAM across two slots, supporting various memory frequencies to cater to different user needs. The dual-channel memory architecture ensures efficient data transfer. Graphics are handled with finesse, offering a DVI-D port supporting a maximum resolution of 1920x1200@60Hz and an HDMI 1.4 port supporting a maximum resolution of 4096x2160@24Hz. The motherboard's Realtek 8111H Gigabit LAN ensures reliable networking. Connectivity is well-rounded with a range of USB ports, including six USB 3.2 Gen1 and six USB 2.0 ports. Storage options are extensive, thanks to the AMD B450 Chipset providing four SATA 6Gb/s ports, supporting RAID 0, RAID1, and RAID 10, and an M.2 slot supporting PCIe 3.0 x4 and SATA 6Gb/s. The audio experience is enriched with 8-Channel HD Audio, featuring Audio Boost technology for immersive sound quality. Internal connectors include ports for power, SATA, USB, fans, audio, and more, ensuring seamless integration into various PC cases. With a 3-year warranty, the MSI B450M-A PRO MAX embodies reliability, versatility, and performance in a compact form factor, making it an ideal choice for users building AMD-based systems with space constraints.
Some additional features of the MSI B450M-A PRO MAX Motherboard AMD
- CPU Support: This motherboard supports 1st, 2nd, and 3rd Gen AMD Ryzen processors, including Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics, Athlon with Radeon Vega Graphics, and A-series/Athlon X4 Desktop Processors for Socket AM4.
- Chipset: It is based on the AMD B450 Chipset, providing reliable performance and compatibility with AMD processors.
- Form Factor: The motherboard features a micro-ATX (m-ATX) form factor, making it suitable for compact PC builds while retaining essential features.
- PCIe Slots: It offers one PCIe 3.0 x16 slot (PCI_E1) supporting x16 speed with 1st and 2nd Gen AMD Ryzen processors, x8 speed with AMD Ryzen with Radeon Vega Graphics processors, and x4 speed with AMD Athlon with Radeon Vega Graphics Processors. Additionally, there are two PCIe 2.0 x1 slots for additional expansion cards.
- M.2 Slot: The motherboard includes one M.2 slot (Key M) that supports PCIe 3.0 x4 for RYZEN Series Processors and PCIe 3.0 x2 for AMD Athlon with Radeon Vega Graphics. It also supports SATA 6Gb/s standards and storage devices with form factors of 2242, 2260, and 2280.
- Memory Support: It features dual-channel memory architecture with two DDR4 memory slots. Supported memory speeds include JEDEC standard speeds of 1866/2133/2400/2667MHz. For AMD Ryzen Gen3 (R5/R7/R9) processors, it supports faster speeds, including 2667/2800/2933/3000/3066/3200/3466/3733/3866/4000/4133 MHz using A-XMP OC MODE. For other AMD CPU models, it supports memory speeds up to 3200 MHz.
- Maximum Memory: The motherboard supports a maximum memory capacity of 32GB, allowing for a decent memory configuration.
- Graphics Ports: It provides a DVI-D port supporting a maximum resolution of 1920x1200@60Hz and an HDMI 1.4 port supporting a maximum resolution of 4096x2160 @24Hz. These ports allow for flexible display options.
- Max Shared Memory: It supports a maximum shared memory of 2048MB for enhanced graphics performance.
- USB Ports: The motherboard is equipped with a total of 6 USB 3.2 Gen1 ports and 6 USB 2.0 ports, ensuring ample connectivity options for peripherals and accessories.
- LAN Port: It features a Realtek 8111H Gigabit LAN controller for reliable wired network connectivity.
- Supported Storage: The motherboard, powered by the AMD B450 Chipset, offers four SATA 6Gb/s ports and supports RAID 0, RAID 1, and RAID 10 for data redundancy and performance improvements. It also has an M.2 slot (Key M) supporting PCIe 3.0 x4 and SATA 6Gb/s for faster storage solutions. Supported storage devices include 2242, 2260, 2280, and 22110.
- Audio: The motherboard is equipped with an 8-Channel (7.1) HD Audio system featuring Audio Boost, delivering high-quality sound for an immersive audio experience.
- Internal I/O Ports: It includes a range of internal connectors, such as the 24-pin ATX main power connector, 4-pin ATX 12V power connector, SATA connectors, USB connectors, CPU fan and system fan connectors, front panel audio connector, front panel connectors, chassis intrusion connector, serial port connector, and Clear CMOS jumper. These internal connectors allow for flexible customization and expansion.
- TPM (Trusted Platform Module): The motherboard features a TPM module connector, enhancing security for sensitive data and applications.
- Warranty: The MSI B450M-A PRO MAX is backed by a 3-year manufacturer's warranty, ensuring its reliability and durability.
This motherboard offers a balanced set of features suitable for various computing needs, including gaming, content creation, and everyday computing tasks.
Questions
Have question about this product? Get specific details about this product from expert.
What is the maximum memory capacity, and what type of memory is supported?
( Kona Kumari Saha, 11/10/2023 )
The motherboard supports a maximum memory capacity of 32GB across two DDR4 memory slots. It supports DDR4 memory with frequencies ranging from 1866MHz to higher speeds through A-XMP OC Mode.
